Part Number | Vin (Max) (V) | Shut Down Current typ. (uA) | Absolute Breakdown Voltage(v) | Operating Temp(℃) | Package Group | Packing/QTY | Download |
---|---|---|---|---|---|---|---|

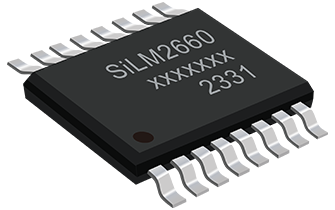

SiLM2660/61(适用于电池充放电的高边 NMOS 驱动器) | 下载 | ||||||
SiLM2660CD-DG | 90 | 6 | 100 | –40 ~ 85 | TSSOP16 | Reel/3000 | |
SiLM2661CA-DG | 90 | 6 | 100 | –40 ~ 85 | SOP8 | Reel/2500 |
Part Number | Power Switch | IOH/IOL(A) | Input VCC (V) | Prop. Delay(ns) | Tr/Tf Typ. (ns) | Operating Temp(℃) | Package Group | Packing/QTY | Download |
---|---|---|---|---|---|---|---|---|---|

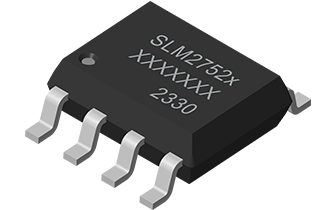

SLM27524(双通道 20V, 4.5A/5.5A 高速低边门极驱动器) | 下载 | ||||||||
SLM27524CA-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | SOP8 | Reel/2500 | |
SLM27524GB-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | MSOP8-EP | Reel/4000 | |
SiLM27524NCA-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | SOP8 | Reel/2500 | |

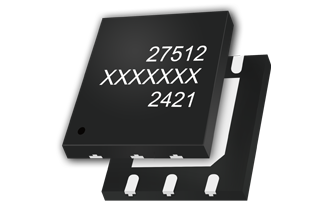

SiLM27512(单通道 20V, 4A/5A 高速低边门极驱动器) | 下载 | ||||||||
SiLM27512EM-DG | IGBT/MOSFET | 4.0/5.0 | 4.5 ~ 20 | 18/18 | 7/5 | -40 ~ 125 | DFN3*3-6 | Reel/3000 | |

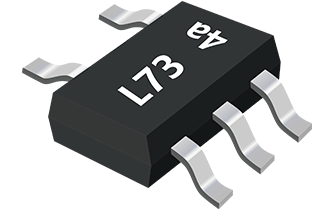

SiLM27273(单通道 20V, 4A/5A 高速低边门极驱动器) | 下载 | ||||||||
SiLM27273AD-7G | IGBT/MOSFET | 4.0/5.0 | 4.5-20 | 18/18 | 7/5 | -40 ~ 140 | SOT23-5 | Reel/3000 | |
SiLM27519(单通道 20V, 4A/5A 高速低边门极驱动器) | 下载 | ||||||||
SiLM27519AD-7G | IGBT/MOSFET | 4.0/5.0 | 4.5-20 | 18/18 | 7/5 | -40 ~ 125 | SOT23-5 | Reel/3000 | |
SiLM27624(双通道 30V, 5A/5A 高速低边门极驱动器) | 下载 | ||||||||
SiLM27624LCA-DG | MOSFET/IGBT/GaN | 5.0/5.0 | 4.5-30 | 20/20 | 7/6 | -40 ~ 125 | SOP8 | Reel/2500 | |
SiLM27624MCA-DG | MOSFET/IGBT/GaN | 5.0/5.0 | 9.0-30 | 20/20 | 7/6 | -40 ~ 125 | SOP8 | Reel/2500 | |
SiLM27624HCA-DG | MOSFET/IGBT/GaN | 5.0/5.0 | 13.5-30 | 20/20 | 7/6 | -40 ~ 125 | SOP8 | Reel/2500 | |
SiLM27624LGB-DG | MOSFET/IGBT/GaN | 5.0/5.0 | 4.5-30 | 20/20 | 7/6 | -40 ~ 125 | MSOP8-EP | Reel/4000 | |
SiLM27624MGB-DG | MOSFET/IGBT/GaN | 5.0/5.0 | 9.0-30 | 20/20 | 7/6 | -40 ~ 125 | MSOP8-EP | Reel/4000 | |
SiLM27624HGB-DG | MOSFET/IGBT/GaN | 5.0/5.0 | 13.5-30 | 20/20 | 7/6 | -40 ~ 125 | MSOP8-EP | Reel/4000 | |
SiLM27624LNCA-DG | MOSFET/IGBT/GaN | 5.0/5.0 | 4.5-30 | 20/20 | 7/6 | -40 ~ 125 | SOP8 | Reel/2500 | |
SiLM27624LCA-AQ | MOSFET/IGBT/GaN | 5.0/5.0 | 4.5-30 | 20/20 | 7/6 | -40 ~ 125 | SOP8 | Reel/2500 | |
SiLM27624MCA-AQ | MOSFET/IGBT/GaN | 5.0/5.0 | 9.0-30 | 20/20 | 7/6 | -40 ~ 125 | SOP8 | Reel/2500 | |
SiLM27624HCA-AQ | MOSFET/IGBT/GaN | 5.0/5.0 | 13.5-30 | 20/20 | 7/6 | -40 ~ 125 | SOP8 | Reel/2500 | |
SiLM27624LGB-AQ | MOSFET/IGBT/GaN | 5.0/5.0 | 4.5-30 | 20/20 | 7/6 | -40 ~ 125 | MSOP8-EP | Reel/4000 | |
SiLM27624MGB-AQ | MOSFET/IGBT/GaN | 5.0/5.0 | 9.0-30 | 20/20 | 7/6 | -40 ~ 125 | MSOP8-EP | Reel/4000 | |
SiLM27624HGB-AQ | MOSFET/IGBT/GaN | 5.0/5.0 | 13.5-30 | 20/20 | 7/6 | -40 ~ 125 | MSOP8-EP | Reel/4000 | |
SLM27526(双通道 20V, 4.5A/5.5A 高速低边门极驱动器) | 下载 | ||||||||
SLM27526EN-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | DFN3*3-8 | Reel/3000 | |
SLM27525(双通道 20V, 4.5A/5.5A 高速低边门极驱动器) | 下载 | ||||||||
SLM27525CA-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | SOP8 | Reel/2500 | |
SLM27525GB-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | MSOP8-EP | Reel/4000 | |
SLM27523(双通道 20V, 4.5A/5.5A 高速低边门极驱动器) | 下载 | ||||||||
SLM27523CA-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | SOP8 | Reel/2500 | |
SLM27524CA-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | SOP8 | Reel/2500 | |
SLM27525CA-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | SOP8 | Reel/2500 | |
SLM27523GB-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | MSOP8-EP | Reel/4000 | |
SLM27524GB-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | MSOP8-EP | Reel/4000 | |
SLM27525GB-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | MSOP8-EP | Reel/4000 | |
SiLM27523NCA-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | SOP8 | Reel/2500 | |
SiLM27524NCA-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | SOP8 | Reel/2500 | |
SLM27526EN-DG | IGBT/MOSFET | 4.5/5.5 | 4.5-20 | 18/18 | 7/6 | -40 ~ 140 | DFN3*3-8 | Reel/3000 | |
SiLM27531H-AQ(单通道 30V, 5A/5A 高欠压保护阈值的高速低边门极驱动) | 下载 | ||||||||
SiLM27531HAC-7G | IGBT/MOSFET/SiC/GaN | 5.0/5.0 | 13.5-30 | 21/21 | 9/8 | -40 ~125 | SOT23-6 | Reel/3000 | |
SiLM27531HAC-AQ | IGBT/MOSFET/SiC/GaN | 5.0/5.0 | 13.5-30 | 21/21 | 9/8 | -40 ~125 | SOT23-6 | Reel/3000 | |
SiLM27517H(单通道 20V, 4A/5A 高欠压保护低边门极驱动器) | 下载 | ||||||||
SiLM27517HAD-7G | IGBT/MOSFET | 4.0/5.0 | 13.5-20 | 18/18 | 9/6 | -40 ~ 125 | SOT23-5 | Reel/3000 | |
SiLM27517HAD-AQ | IGBT/MOSFET | 4.0/5.0 | 13.5-20 | 18/18 | 9/6 | -40 ~ 125 | SOT23-5 | Reel/3000 | |
SiLM27511H(单通道 20V, 4A/5A 高欠压保护低边门极驱动器) | 下载 | ||||||||
SiLM27511HAC-7G | IGBT/MOSFET | 4.0/5.0 | 13.5-20 | 18/18 | 9/6 | -40 ~ 125 | SOT23-6 | Reel/3000 | |
SiLM27511HCJ-AQ | IGBT/MOSFET | 4.0/5.0 | 13.5-20 | 18/18 | 9/6 | -40 ~ 125 | SOP14 | Reel/2500 | |
SLM27511(单通道 20V, 4A/5A 高速低边门极驱动器) | 下载 | ||||||||
SLM27511AC-7G | IGBT/MOSFET | 4.0/5.0 | 4.5-20 | 18/18 | 7/5 | -40 ~ 125 | SOT23-6 | Reel/3000 | |
SLM27517(单通道 20V, 4A/5A 高速低边门极驱动器) | 下载 | ||||||||
SLM27517AD-7G | IGBT/MOSFET | 4.0/5.0 | 4.5-20 | 18/18 | 7/5 | -40 ~ 125 | SOT23-5 | Reel/3000 |
Part Number | Power Switch | IOH/IOL (A) | Bus voltage(Max)(V) | Input VCC (V) | Ton/Toff Typ(ns) | Tr/Tf Typ(ns) | Delay Match Max(ns) | Operating Temp(℃) | Package Group | Packing/QTY | Download |
---|---|---|---|---|---|---|---|---|---|---|---|

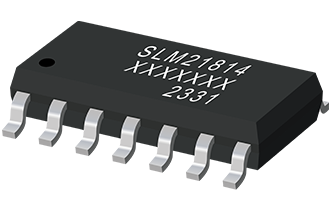

SLM21814(600V, 2.5A/3.5A 高低边门极驱动器) | 下载 | ||||||||||
SLM21814CJ-DG | IGBT/ MOSFET | 2.5/3.5 | 600 | 10-20 | 180/200 | 10/8 | 35 | -40-125 | SOP14 | Reel/2500 | |
SiLM21814CJ-AQ | IGBT/ MOSFET | 2.5/3.5 | 600 | 10-20 | 180/200 | 10/8 | 35 | -40-125 | SOP14 | Reel/2500 | |

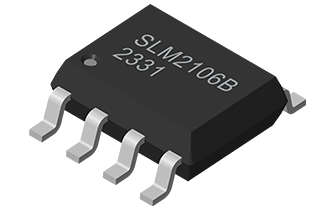

SLM2106B(600V, 450mA/950mA 高低边驱动) | 下载 | ||||||||||
SLM2106BCA-13GTR | IGBT/ MOSFET | 0.45/0.95 | 600 | 10-20 | 160/220 | 45/18 | 30 | -40-125 | SOP8 | Reel/2500 | |

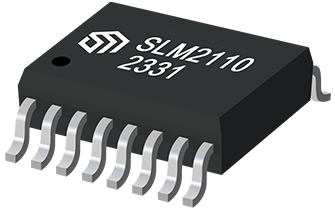

SLM2110(600V, 1000mA/1600mA 高低边门极驱动器) | 下载 | ||||||||||
SLM2110CG | IGBT/ MOSFET | 1.0/1.6 | 600 | 10-20 | 140/140 | 15/9 | 10 | -40-125 | SOP16W | Reel/1500 | |
SLM21867(600V, 2.5A/3A 高低边门极驱动器) | 下载 | ||||||||||
SLM21867CA-DG | IGBT/ MOSFET | 2.5/3.0 | 600 | 7-20 | 170/170 | 8/5 | 35 | -40-125 | SOP8 | Reel/2500 | |

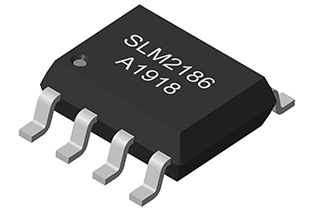

SLM2186(600V, 2.5A/3A 高低边门极驱动器) | 下载 | ||||||||||
SiLM2186CA-DG | IGBT/ MOSFET | 2.5/3.0 | 600 | 10 ~ 20 | 170/170 | 8/5 | 35 | -40 ~ 125 | SOP8 | Reel/2500 | |
SiLM2186CA-AQ | IGBT/ MOSFET | 2.5/3.0 | 600 | 10 ~ 20 | 170/170 | 8/5 | 35 | -40 ~ 125 | SOP8 | Reel/2500 | |
SLM2181(600V, 450mA/950mA 高低边门极驱动器) | 下载 | ||||||||||
SLM2181CA-DG | IGBT/ MOSFET | 0.45/0.95 | 600 | 10-20 | 150/220 | 45/17 | 35 | -40-125 | SOP8 | Reel/2500 | |

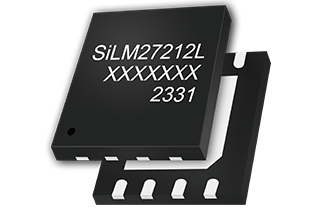

SiLM27212(270V 4A/4A 集成自举二极管的高低边门极驱动) | 下载 | ||||||||||
SiLM27212LEK-DG | MOSFET | 3.0/4.5 | 250 | 7-17 | 30/30 | 7/5 | 2 | -40 ~ 125 | DFN4*4-8 | Reel/3000 | |
SiLM27212EK-DG | MOSFET | 3.0/4.5 | 250 | 8-17 | 30/30 | 7/5 | 2 | -40 ~ 125 | DFN4*4-8 | Reel/3000 | |
SiLM27212LCA-DG | MOSFET | 3.0/4.5 | 250 | 7-17 | 30/30 | 7/5 | 2 | -40 ~ 125 | SOP8 | Reel/2500 | |
SiLM27212CA-DG | MOSFET | 3.0/4.5 | 250 | 8-17 | 30/30 | 7/5 | 2 | -40 ~ 125 | SOP8 | Reel/2500 | |
SiLM27212LCB-DG | MOSFET | 3.0/4.5 | 250 | 7-17 | 30/30 | 7/5 | 2 | -40 ~ 125 | SOP8-EP | Reel/2500 | |
SiLM27212CB-DG | MOSFET | 3.0/4.5 | 250 | 8-17 | 30/30 | 7/5 | 2 | -40 ~ 125 | SOP8-EP | Reel/2500 | |

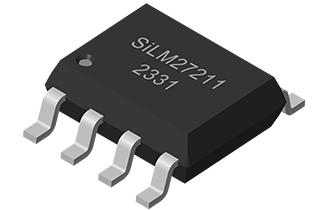

SLM27211(120V, 3A/4.5A 集成自举二极管的高低边门极驱动器) | 下载 | ||||||||||
SLM27211CA-DG | MOSFET | 3.0/4.5 | 105 | 8-17 | 22/21 | 7/5 | 7 | -40-125 | SOP8 | Reel/2500 | |
SLM27211CB-DG | MOSFET | 3.0/4.5 | 105 | 8-17 | 22/21 | 7/5 | 7 | -40-125 | SOP8-EP | Reel/2500 | |
SLM27211EL-7G | MOSFET | 3.0/4.5 | 105 | 8-17 | 22/21 | 7/5 | 7 | -40-125 | DFN4*4-10 | Reel/1000 | |
SLM27211EK-DG | MOSFET | 3.0/4.5 | 105 | 8-17 | 22/21 | 7/5 | 7 | -40-125 | DFN4*4-8 | Reel/3000 |
Part Number | Power Switch | IOH/IOL (A) | Bus voltage (Max)(V) | Input VCC (V) | Ton/Toff Typ(ns) | Tr/Tf Typ(ns) | Deadtime Typ(ns) | Delay Match Max(ns) | Operating Temp(℃) | Package Group | Packing/QTY | Download |
---|---|---|---|---|---|---|---|---|---|---|---|---|

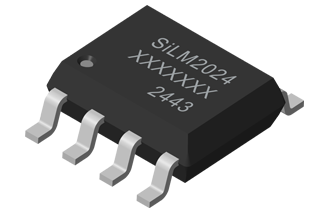

SiLM2024(200V, 290/600mA 半桥驱动) | 下载 | |||||||||||
SiLM2024CA-DG | IGBT/ MOSFET | 0.29/0.6 | 200 | 10-20 | 680/150 | 70/35 | 520 | -40 ~ 125 | SOP8 | Reel/2500 | ||

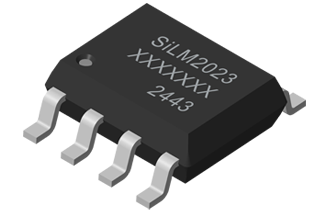

SiLM2023(200V, 290/600mA 半桥驱动) | 下载 | |||||||||||
SiLM2023CA-DG | IGBT/ MOSFET | 0.29/0.6 | 200 | 10-20 | 680/150 | 70/35 | 520 | 60 | -40 ~ 125 | SOP8 | Reel/2500 | |

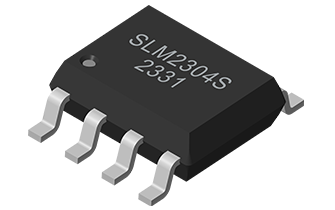

SLM2304S(600V, 130mA/270mA 高压半桥驱动) | 下载 | |||||||||||
SLM2304SCA-13GTR | IGBT/ MOSFET | 0.29/0.6 | 600 | 10-20 | 160/230 | 70/35 | N/A | 60 | -40-125 | SOP8 | Reel/2500 | |
SLM2101S(600V, 130mA/270mA 高压半桥驱动) | 下载 | |||||||||||
SLM2001SCA-13GTR | IGBT/ MOSFET | 0.29/0.6 | 200 | 10-20 | 160/220 | 70/35 | NA | 60 | -40 ~ 125 | SOP8 | Reel/2500 | |
SLM21364(600V 200/350mA高压三相半桥驱动芯片) | 下载 | |||||||||||
SLM21364CF-DG | IGBT/ MOSFET | 0.2/0.35 | 600 | 10-20 | 350/400 | 100/40 | 290 | 100 | -40-125 | SOP28W | Reel/1000 | |

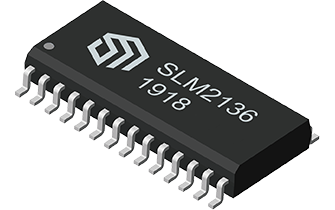

SLM2136(600V 200mA/350mA 高压三相半桥驱动芯片) | 下载 | |||||||||||
SLM2136CF-DG | IGBT/ MOSFET | 0.25/0.35 | 600 | 10-20 | 480/370 | 125/50 | 290 | 90 | -40-125 | SOP28W | Reel/1000 | |

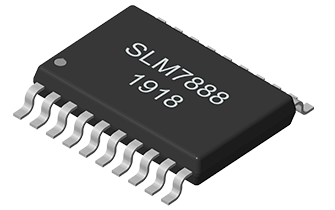

SLM7888(160V, 350mA/650mA 低压三相半桥驱动) | 下载 | |||||||||||
SLM7888MD | IGBT/ MOSFET | 0.35/0.65 | 160 | 10-20 | 100/110 | 50/30 | 270 | 50 | -40-125 | TSSOP20 | Reel/4000 | |
SLM7888CH | IGBT/ MOSFET | 0.35/0.65 | 160 | 10-20 | 100/110 | 50/30 | 270 | 50 | -40-125 | SOP20W | Reel/1000 | |
SLM2184S(600V, 450mA/950mA 高压半桥驱动) | 下载 | |||||||||||
SLM2184SCA-13GTR | IGBT/ MOSFET | 0.45/0.95 | 600 | 10-20 | 680/200 | 40/20 | 520 | 60 | -40-125 | SOP8 | Reel/2500 | |
SLM2106S(600V, 290mA/600mA高压半桥驱动) | 下载 | |||||||||||
SLM2106SCA-13GTR | IGBT/ MOSFET | 0.29/0.6 | 600 | 10-20 | 160/220 | 70/35 | N/A | 30 | -40-125 | SOP8 | Reel/2500 | |
SLM2106SCJ-13GTR | IGBT/ MOSFET | 0.29/0.6 | 600 | 10-20 | 160/220 | 70/35 | N/A | 30 | -40-125 | SOP14 | Reel/4000 | |
SLM2104S(600V, 290mA/600mA高压半桥驱动) | 下载 | |||||||||||
SLM2104SCA-13GTR | IGBT/ MOSFET | 0.29/0.6 | 600 | 10-20 | 680/180 | 70/25 | 520 | 60 | -40-125 | SOP8 | Reel/2500 | |

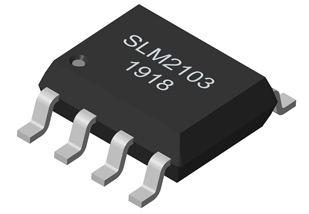

SLM2103S(600V, 290mA/600mA 高压半桥驱动) | 下载 | |||||||||||
SLM2103SCA-13GTR | IGBT/ MOSFET | 0.29/0.6 | 600 | 10-20 | 680/150 | 70/35 | 520 | 155 | -40-125 | SOP8 | Reel/2500 | |

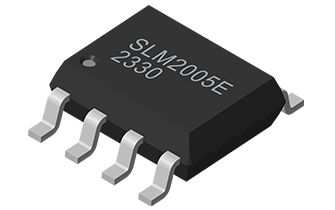

SLM2005E(200V低压驱动芯片) | 下载 | |||||||||||
SLM2005ECA-DG | IGBT/ MOSFET | 1.0/1.5 | 200 | 10-18 | 150/150 | 25/10 | 110 | 60 | -40-125 | SOP8 | Reel/4000 | |

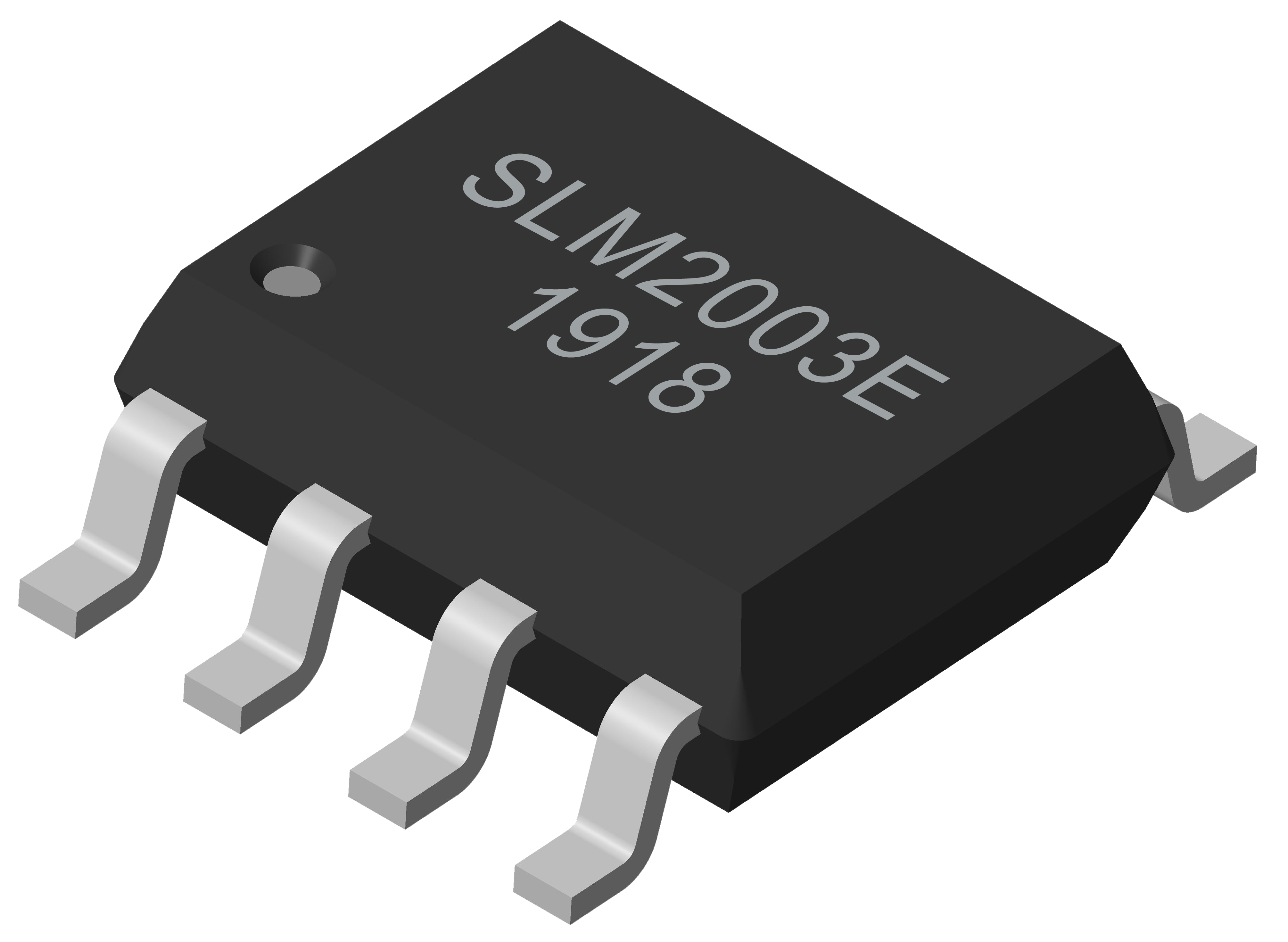

SLM2003E(200V低压驱动芯片) | 下载 | |||||||||||
SLM2003ECA-DG | IGBT/ MOSFET | 0.29/0.6 | 200 | 10-18 | 125/125 | 70/25 | 500 | 60 | -40-125 | SOP8 | Reel/2500 | |

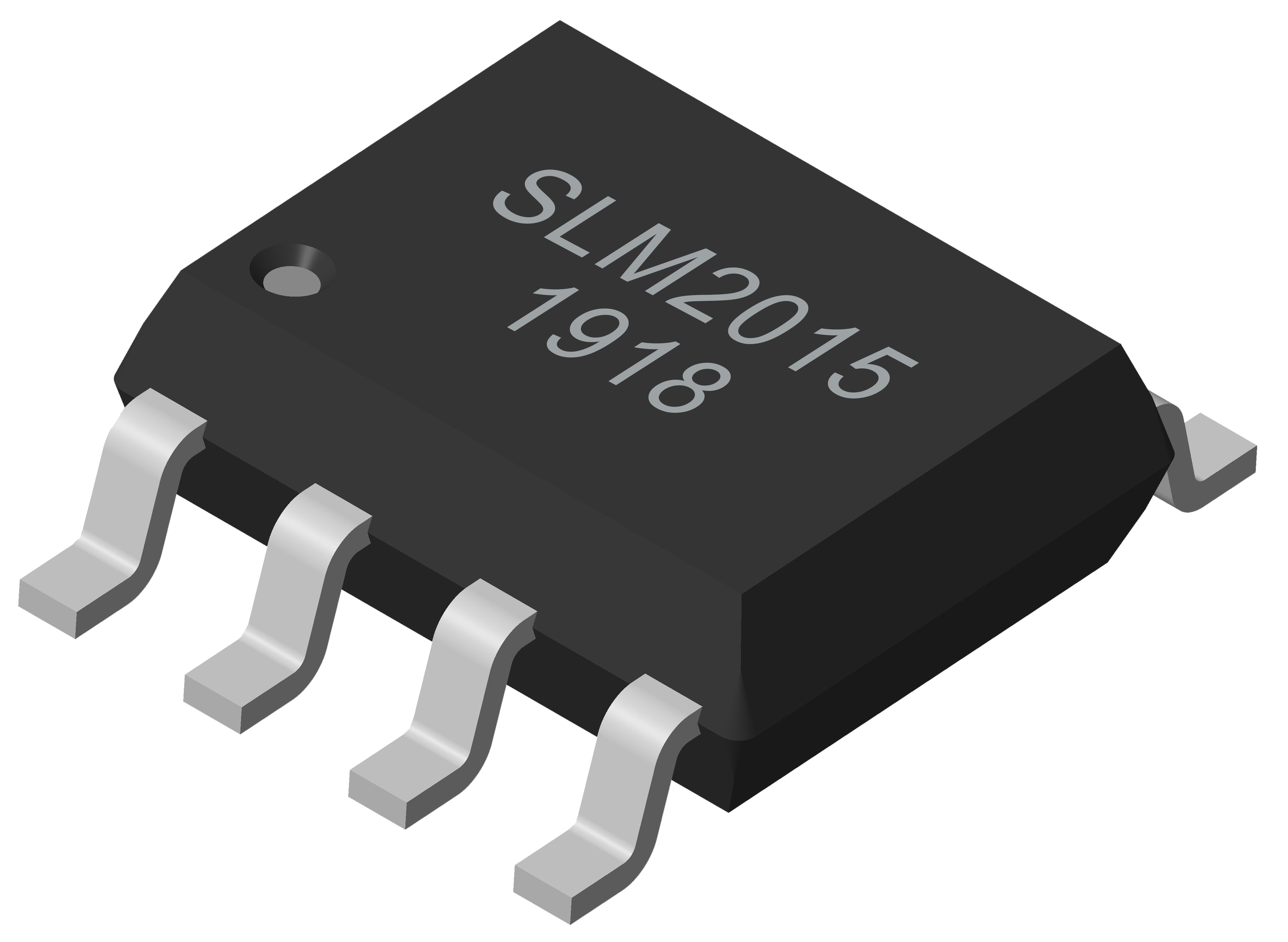

SLM2015(160V低压驱动芯片) | 下载 | |||||||||||
SLM2015CA-DG | IGBT/ MOSFET | 1.0/1.5 | 160 | 10-18 | 150/150 | 25/10 | 110 | 60 | -40-125 | SOP8 | Reel/4000 | |

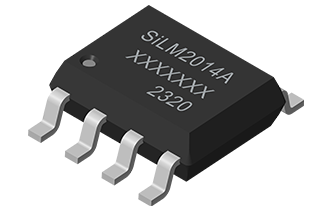

SiLM2014A(200V低压驱动芯片) | 下载 | |||||||||||
SiLM2014ACA-DG | IGBT/ MOSFET | 1.0/1.5 | 200 | 10-18 | 260/150 | 25/10 | 150 | - | -40 ~ 125 | SOP8 | Reel/2500 | |

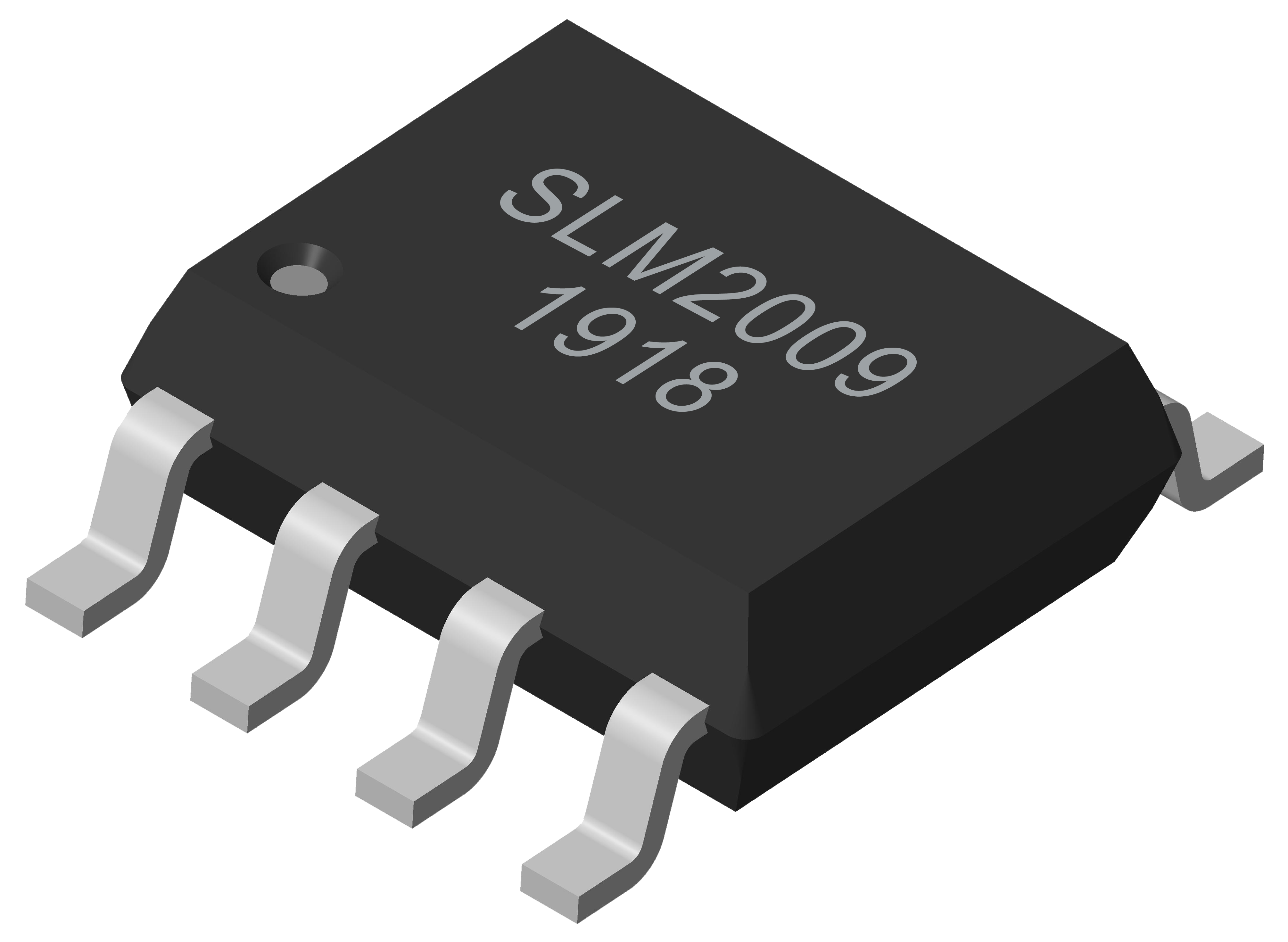

SLM2009(200V低压驱动芯片) | 下载 | |||||||||||
SLM2009CA-DG | IGBT/ MOSFET | 1/1.5 | 200 | 10-18 | 150/150 | 25/10 | 110 | 60 | -40-125 | SOP8 | Reel/4000 | |
SLM2005S(200V低压驱动芯片) | 下载 | |||||||||||
SLM2005SCA-13GTR | IGBT/ MOSFET | 0.29/0.6 | 200 | 10-20 | 160/220 | 70/35 | NA | 60 | -40-125 | SOP8 | Reel/2500 | |
SLM2004S(200V低压驱动芯片) | 下载 | |||||||||||
SLM2004SCA-13GTR | IGBT/ MOSFET | 0.29/0.6 | 200 | 10-20 | 680/180 | 70/25 | 520 | 60 | -40-125 | SOP8 | Reel/2500 | |
SLM2003S(200V低压驱动芯片) | 下载 | |||||||||||
SLM2003SCA-13GTR | IGBT/ MOSFET | 0.29/0.6 | 200 | 10-20 | 680/150 | 70/35 | 520 | 155 | -40-125 | SOP8 | Reel/2500 | |
SLM2001S(200V低压驱动芯片) | 下载 | |||||||||||
SLM2001SCA-13GTR | IGBT/ MOSFET | 0.29/0.6 | 200 | 10-20 | 160/220 | 70/35 | NA | 60 | -40-125 | SOP8 | Reel/2500 |
